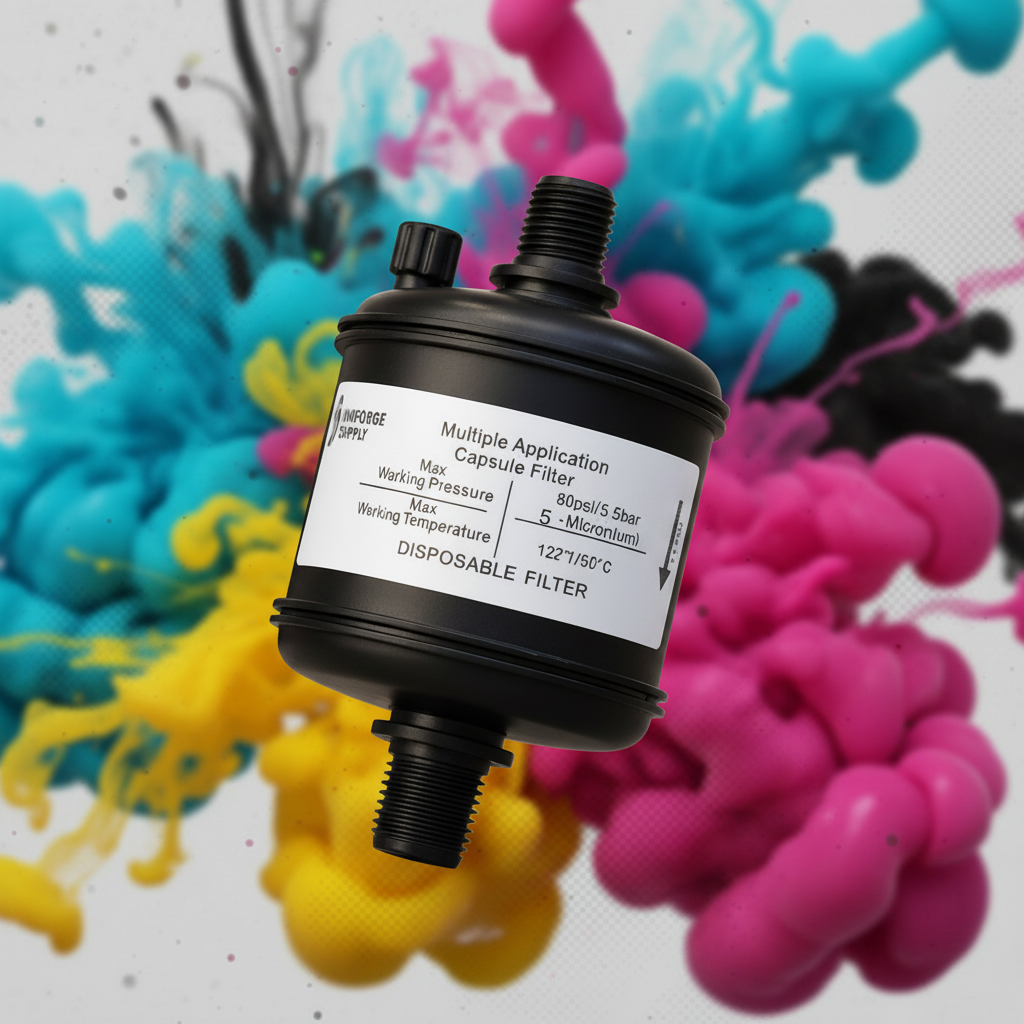

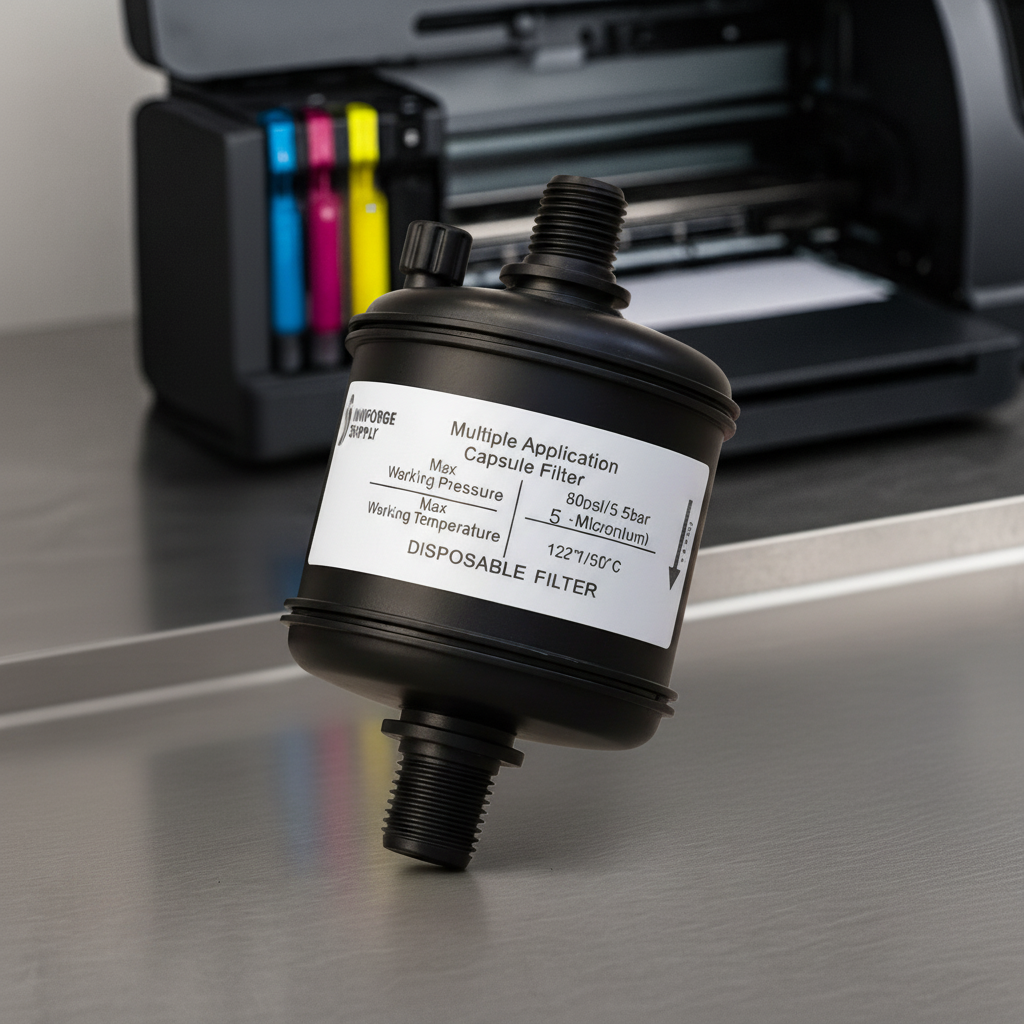

Black Ultra-Violet Protection 5 & 10 Micron/UM Capsule Filter (PP)

Overview

The Filter Forge FDF5 Series PP Capsule Filter delivers high-performance, sterilizing-grade filtration for liquid, air, and gas applications across pharmaceutical, biotech, laboratory, and industrial environments. Designed with durable polypropylene housings and hydrophobic membranes (PTFE, PVDF, fiberglass laminate), it removes bacteria, particles, aerosols, and moisture with exceptional reliability.

The black capsule model features an ultra-violet protection shell, safeguarding sensitive filtration media from harmful UV exposure and maintaining long-term stability in high-light environments.

Compact and high-flow, this capsule filter provides clean, sterile air exchange for vessels such as bioreactors, fermentation tanks, and process lines—acting as a dependable barrier against water, contaminants, and airborne impurities.

Engineered for professional performance, the FDF5 Series matches the quality of Cobetter® and Pall® sterilizing-grade filters while offering a more economical and efficient alternative for modern filtration systems.

⭐ Features & Benefits

• 🔍 Ideal for small-volume venting, solvent, and gas filtration
•  🧴 Broad chemical compatibility
• 🟣 Ultra-violet protection shell
•  💰 Cost-effective; available in bulk packaging
•  ✔️ 100% integrity tested during manufacturing
•  🔢 Individually serialized for full traceability

 📊 Key Features

• 🧴 Premium PP Filter Media for excellent chemical resistance
• 🔍 Micron Options: 5µm, 10µm
• 📏 Size Variants: 1.5", 2.5", 5"
• ⚖️ Lightweight: 0.08 kg / 0.19lbs
• 🔧 End Cap Choices: CPC, Swagelok, Hose Barb
• 🔥 Temp Safe: Up to 60°C / 140F°
• 📹 Quality Verified: Test report & video inspection included

📈 Specifications

• 🧵 Filter Media: PP (Polypropylene)
• 🔍 Micron Ratings: 5µm / 10µm
• 📏 Lengths: 2", 2.5", 5"
• 🎨 Colors: White
• 🔧 End Caps: CPC, Swagelok, Hose Barb
• 🌡️ Temperature Limit: ≤ 60°C / 140F°
• ⚖️ Weight: 0.08 kg / 0.19lbs
• 💧 Usage: Liquid, Gas, & Vent Filtration
• 🔖 Brand: Filter Forge Supply
• 🧪 Test Report: Provided
• 📹 Video Inspection: Provided

❓ FAQ

 🔎 What are these capsule filters used for?

• They are ideal for liquid filtration, air and gas sterilization, solvent filtering, and venting applications in labs and industrial settings.

 📌 Which micron size should I choose?

• 5µm – Fine filtration
• 10µm – Standard filtration


 🧰 Which connection type should I select?

• CPC – Quick-connect
• Swagelok – Precision compression fittings
• Hose Barb – Flexible tubing
• 1/4" NPT

 ♻️ Are these reusable?

• No. These are single-use filters.

 🔥 Can they handle hot liquids or gases?

• • Yes, up to 60°C. / 140F°
