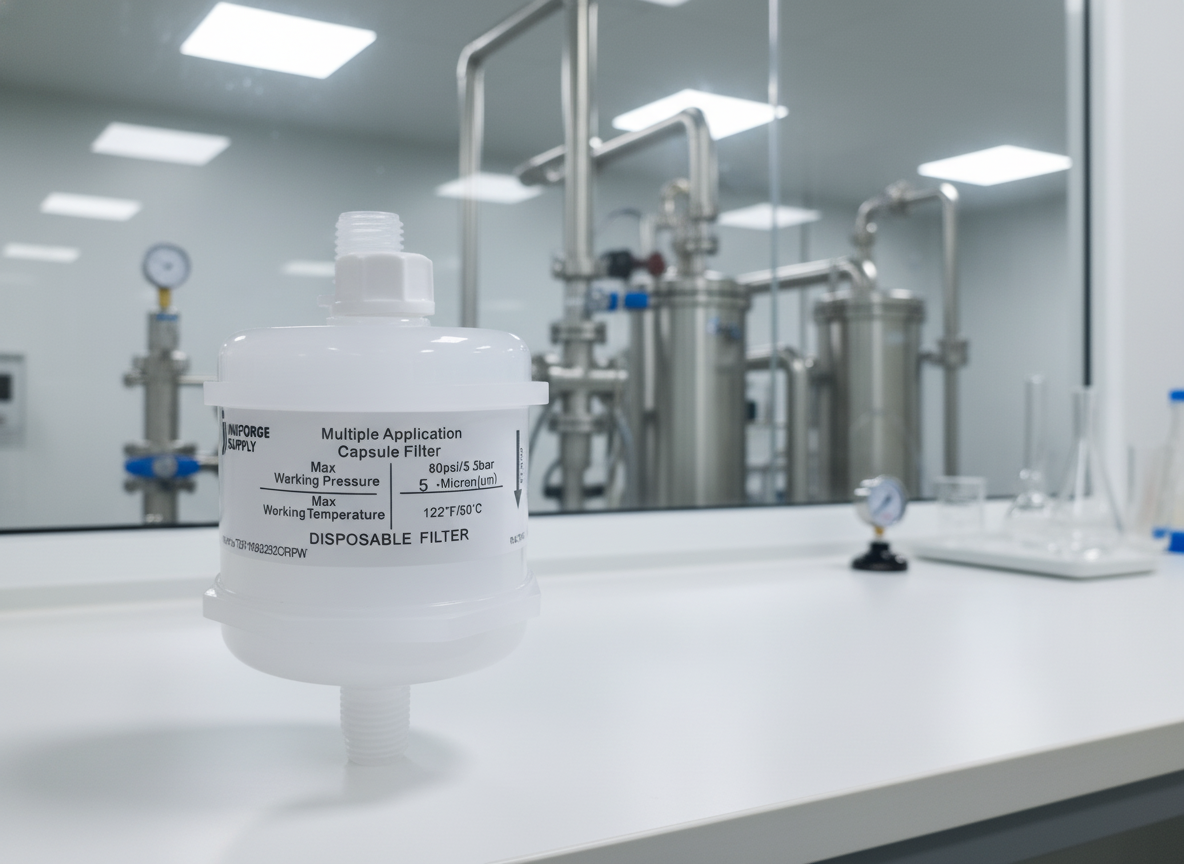

White Ink Capsule Filter 5 & 10 Micron/UM

Overview

This high-performance PP Capsule Filter provides reliable, efficient filtration for laboratory, industrial, chemical, and water-processing systems. Built with durable polypropylene housings and hydrophobic membranes (PTFE, PVDF, fiberglass), it delivers strong bacteria and particle removal in both dry and moist conditions.

The Filter Forge FDF5 Series is a compact, high-flow, sterilizing-grade filter ideal for critical liquid, air, and gas applications in pharma, biotech, and research environments.
It acts as a dependable air-line barrier—blocking water, aerosols, and contaminants while supporting sterile air exchange in vessels like bioreactors.

Performance is on par with Cobetter® and Pall® capsule filters, offering comparable quality at a more economical cost.

⭐ Features & Benefits

• 🔍 Ideal for small-volume venting, solvent, and gas filtration
•  🧴 Broad chemical compatibility
•  💰 Cost-effective; available in bulk packaging
•  ✔️ 100% integrity tested during manufacturing
•  🔢 Individually serialized for full traceability

 📊 Key Features

• 🧴 Premium PP Filter Media for excellent chemical resistance
• 🔍 Micron Options: 5µm, 10µm
• 📏 Size Variants: 2", 2.5", 5"
• ⚖️ Lightweight: 0.08 kg / 0.19lbs
• 🔧 End Cap Choices: CPC, Swagelok, Hose Barb
• 🔥 Temp Safe: Up to 60°C / 140F°
• 📹 Quality Verified: Test report & video inspection included

📈 Specifications

• 🧵 Filter Media: PP (Polypropylene)
• 🔍 Micron Ratings: 5µm / 10µm
• 📏 Lengths: 1.5", 2.5", 5"
• 🎨 Colors: White
• 🔧 End Caps: CPC, Swagelok, Hose Barb
• 🌡️ Temperature Limit: ≤ 60°C / 140F°
• ⚖️ Weight: 0.08 kg / 0.19lbs
• 💧 Usage: Liquid, Gas, & Vent Filtration
• 🔖 Brand: Filter Forge Supply
• 🧪 Test Report: Provided
• 📹 Video Inspection: Provided

❓ FAQ

 🔎 What are these capsule filters used for?

• They are ideal for liquid filtration, air and gas sterilization, solvent filtering, and venting applications in labs and industrial settings.

 📌 Which micron size should I choose?

• 5µm – Fine filtration
• 10µm – Standard filtration


 🧰 Which connection type should I select?

• CPC – Quick-connect
• Swagelok – Precision compression fittings
• Hose Barb – Flexible tubing
• 1/4" NPT

 ♻️ Are these reusable?

• No. These are single-use filters.

  🔥 Can they handle hot liquids or gases?

• Yes, up to 60°C. / 140F°

💎 Why Choose Filter Forge Supply

• 🏭 Built and tested in the United States
• 📄 ISO Certified manufacturing process
• 🚚 Fast delivery (3–5 Business days)
