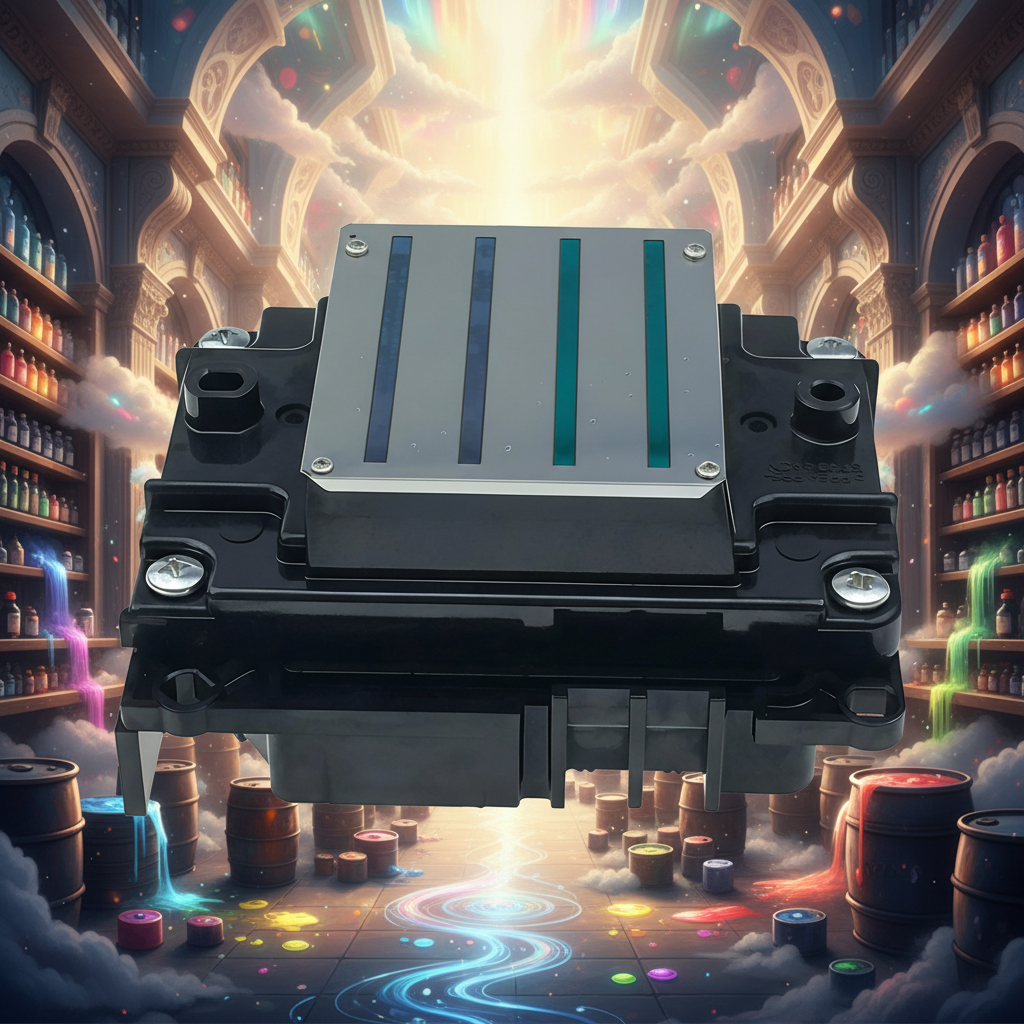

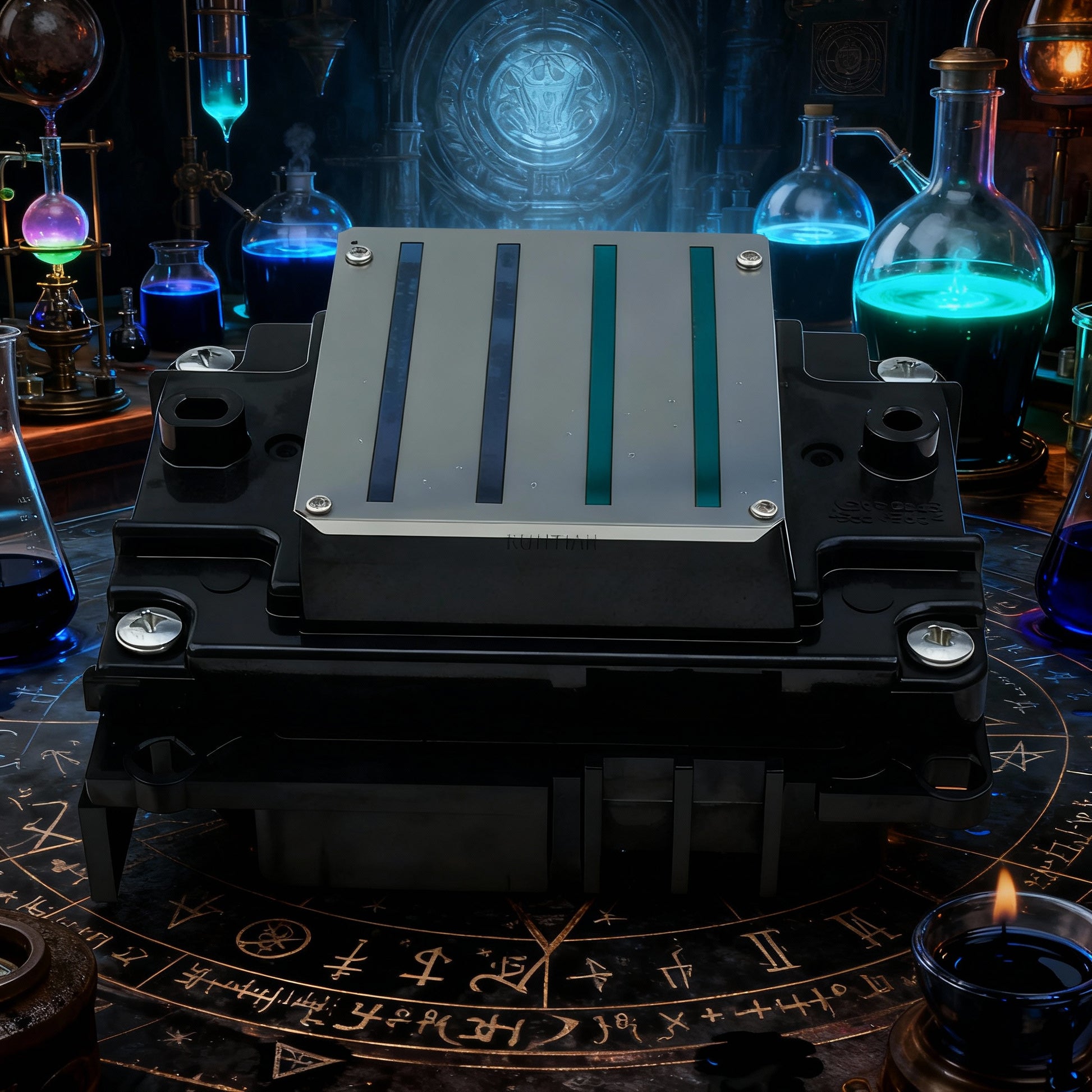

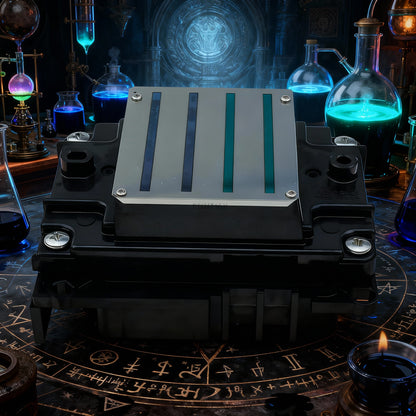

Epson I3200-E1 Eco Solvent Printhead

The Epson I3200-E1 is a PrecisionCore™ MicroTFP piezoelectric inkjet printhead engineered for eco-solvent ink applications. It delivers high resolution and consistent output for commercial and industrial printing environments, with support for up to 4 ink colors and advanced droplet control.

⭐ Key Features

🧠 Advanced Print Technology

• PrecisionCore MicroTFP piezoelectric architecture offers precise and reliable ink ejection.
• Designed specifically for eco-solvent inks, making it suitable for outdoor signage, graphics, and large-format printing.

🔧 High Nozzle Count & Resolution

• 🧩 Total nozzles: 3200 across 8 rows, providing high coverage and density.
• 📍 Nozzle pitch: 1/300 inch per row with 600 npi (nozzles per inch) in dual-row mode.
• 🖨️ Effective print width: 33.8 mm (1.33 inches).

🎨 Color & Ink Compatibility

• 🌈 Supports 4 color channels (typically CMYK) for full-color eco-solvent printing.
• Specifically optimized for eco-solvent inks, known for durability and outdoor resistance.

💧 Droplet Control & Performance

• ⚡ Binary mode: 6 pL droplets at ~43.2 kHz for fast printing.
• 📊 Grey scale options:

  • 3-level: ~6.3 pL and 12.3 pL at ~21.6 kHz

  • 4-level: ~3.8 pL, 5.5 pL, and 8.7 pL at ~21.6 kHz
    — increasing image depth and smoothness.

📐 Dimensions & Build

• 📏 Size: Approx. 69.1 mm × 59.4 mm × 35.6 mm.
• ⚖️ Weight: ~82 g — compact and lightweight for tight hardware integration.

🏭 Typical Applications

• 🪧 Commercial signage & outdoor graphics — durable eco-solvent prints
• 🖼️ Wide-format printing systems
• 📦 Large-format poster artists and textile markets
• 🎨 Industrial graphics requiring robust outdoor performance

The eco-solvent ink compatibility makes it ideal for applications where weather resistance and longevity are required.

📊 Performance at a Glance

• 🧠 Printhead Type: Precision Core Micro TFP piezoelectric
• 🖋️ Ink Type: Eco-Solvent
• 🔢 Nozzles: 3200 total (8 rows)
• 📏 Nozzle Pitch: 1/300 inch
• 🖨️ Resolution: 300 npi/row, 600 npi (2 rows)
• 🌈 Color Support: Up to 4 ink channels
• 📏 Print Width: 33.8 mm (1.33″)
• ⚡ Droplet Sizes: 3.8–12.3 pL levels
• ⚖️ Weight: 82g
• 📦 Dimensions: 69.1 × 59.4 × 35.6 mm
