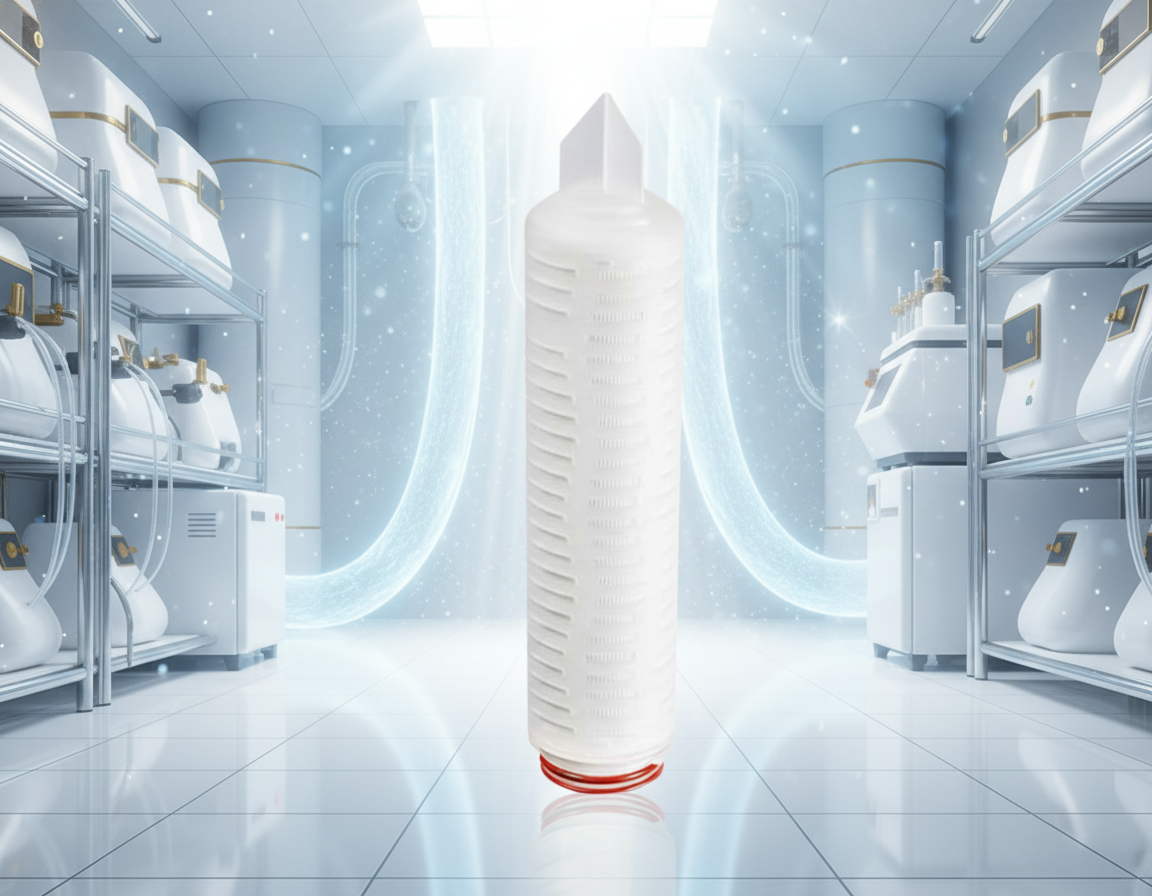

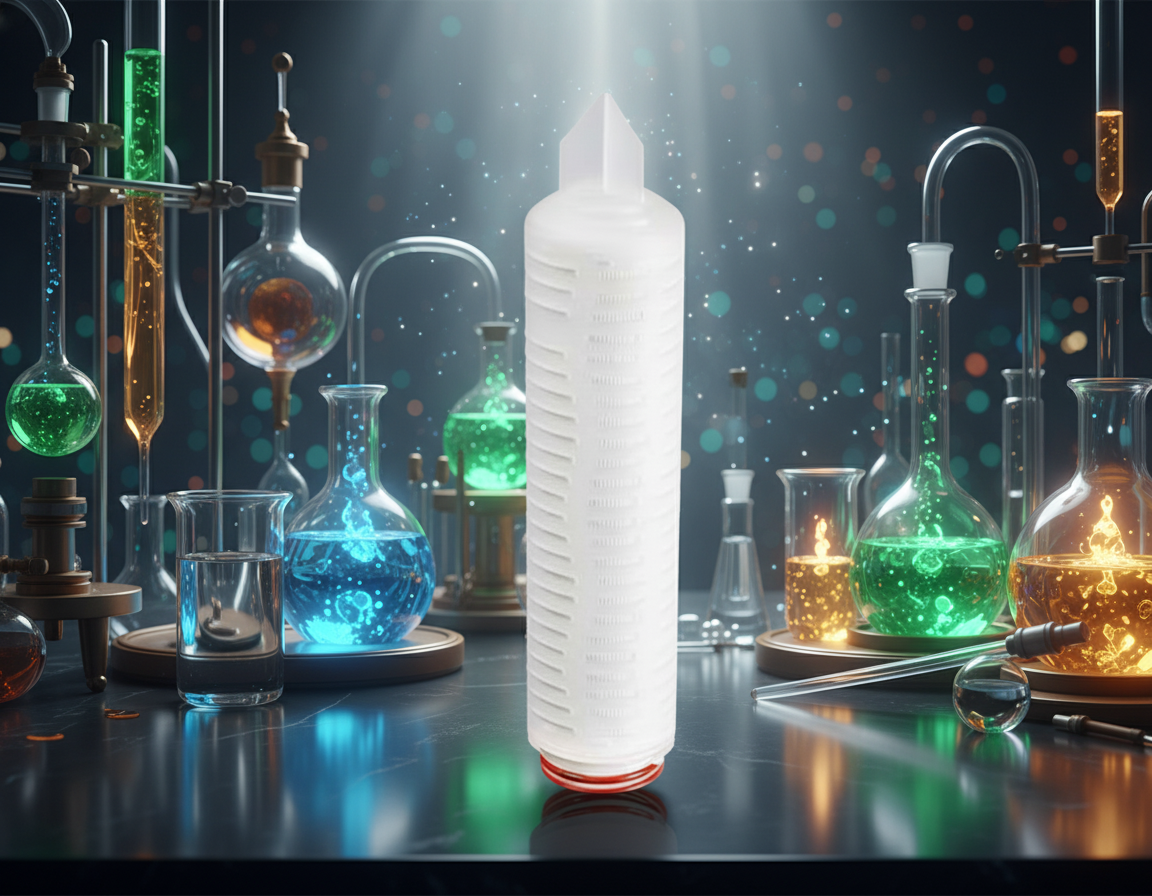

Activated Carbon Fibers Filter Cartridge

The Activated Carbon Fibers (ACF) Filter Cartridge is a high-performance adsorption solution designed for effective contaminant removal across air, water, and organic liquid streams. Manufactured from high-surface-area activated carbon fiber media, it combines depth filtration with powerful adsorption to deliver rapid and efficient removal of impurities through both physical and chemical adsorption mechanisms.

Activated carbon fibers are produced through specialized activation processes that create a dense network of micropores, greatly increasing internal surface area and adsorption efficiency. This advanced structure enables fast and effective capture of organic compounds, chlorine, color bodies, odors, and other pollutants from both liquid and gas phases, making the cartridge suitable for a wide range of industrial, laboratory, and purification applications.

⭐Key Attributes

• ⚙️ Processing Type: Filtration
• 💧 Productivity: 1000 L/Hour
• 🔩 Core Component: Hydrophilic NYLON Membrane

• ⚖️ Weight: 0.5 kg
• 💧 Water Treatment & Purification — Removal of residual chlorine, organics, color, tastes, and odors from potable or process water
• 🌬️ Air Purification — Adsorption of gaseous contaminants such as VOCs, odors, and other harmful compounds

• 🍺 Food & Beverage Processing — Clarification and decolorization to improve product quality and sensory characteristics
• 🔬 Microelectronics & Specialty Liquids — Removal of trace organics and impurities in high-purity rinse or process liquids
• 💪High Mechanical Strength — Strong structural integrity and resistance to deformation under operating conditions.
• ⚡ High-performance adsorption filter — for air, water, and organic liquid streams
• 🏭 Industrial & Chemical Streams — ACF exhibits excellent temperature tolerance and Treatment of liquids containing hydrocarbons or organic pollutants to protect downstream equipment and processes

• 💧 Hydrophilic ACF Membrane — Rapid wetting without pre-wetting and inherently low protein and drug binding for minimal sample loss.
• 🧲 Activated carbon fiber media — with high surface area for superior adsorption efficiency
• 🧱 Combines depth filtration and adsorption — for rapid and effective impurity removal
• 🧪 Physical and chemical adsorption mechanisms — ensure broad contaminant capture
• 🕳️ Microporous fiber structure — created through specialized activation processes
• 🧪 Efficient removal of organic compounds, chlorine, color bodies, odors, and pollutants
• 🌫️💧 Effective in both liquid and gas phases
• 🏭🔬 Suitable for industrial, laboratory, and purification applications
• 🛡️ High-Purity Construction
  Hydrophilic membrane ensures fast wetting and stable flow rates. Engineered for sterile filtration with consistent pore size distribution and high microbial retention. Suitable for critical applications requiring low extractables and consistent integrity.

• 💲 Economical Choice — Reliable performance at a lower cost than premium-name competitors.

📋 Applications

• 💧 Water Treatment & Purification
• 🌬️ Air Purification
• 🌫️💧 Gas & Liquid
• 🍺 Food & Beverage Processing (bottled water, soft drinks, beer)

• 🧴 Organic compound filtration

• 🔬 Microelectronics & Specialty Liquids

🏗️ Construction & Dimensions

• 🪶 Material: Polypropylene housing
• 🧱 Internal Support: PP or PP + stainless liner
• 🧱 Out Cage: PP
• 📐 Outer Diameter (OD): 68–69 mm
• 📏 Inner Diameter (ID): 32 mm
• 📏 Length Options: 2.5" to 40"
• 🫧 Pore Size Options: 0.10 μm, 0.22μm, 0.45 μm, 1 μm, 10 μm, 50 μm
• 📊 Effective Filtration Area: ≥ 0.60 m²

🌡️ Temperature & Pressure Ratings

• Normal Operating Temperature: ≤55°C
• Max Operating Temperature: 80°C (ΔP ≤ 0.10 MPa)

• Max Differential Pressure:
  ➤ Forward: 0.42 MPa @ 25°C
  ➤ Reverse: 0.21 MPa @ 25°C

🌟 Features & Benefits

• 🛡️ Ultra-Low Extractables
  High-quality core and cage materials, extremely low dissolved matter, maintaining product purity and stability.
• 🎛️ Flexible Filtration Options
  Available in single, double, and multi-layer membrane configurations, giving users more choices for performance, flow rate, and retention needs.
• 🔄 Universal Compatibility
  Multiple end-cap types allow seamless integration with a wide range of filter housings, making installation fast and versatile.
• 🔥 No Adhesive Contamination
  Thermally bonded construction eliminates the risk of adhesive pollutants, ensuring safe and clean filtration for sensitive applications.
• 🧼 Cleanroom Production Quality
  Manufactured in an ISO Class 8 cleanroom and rinsed with high-purity water, guaranteeing low particle shedding and high filtration integrity.
