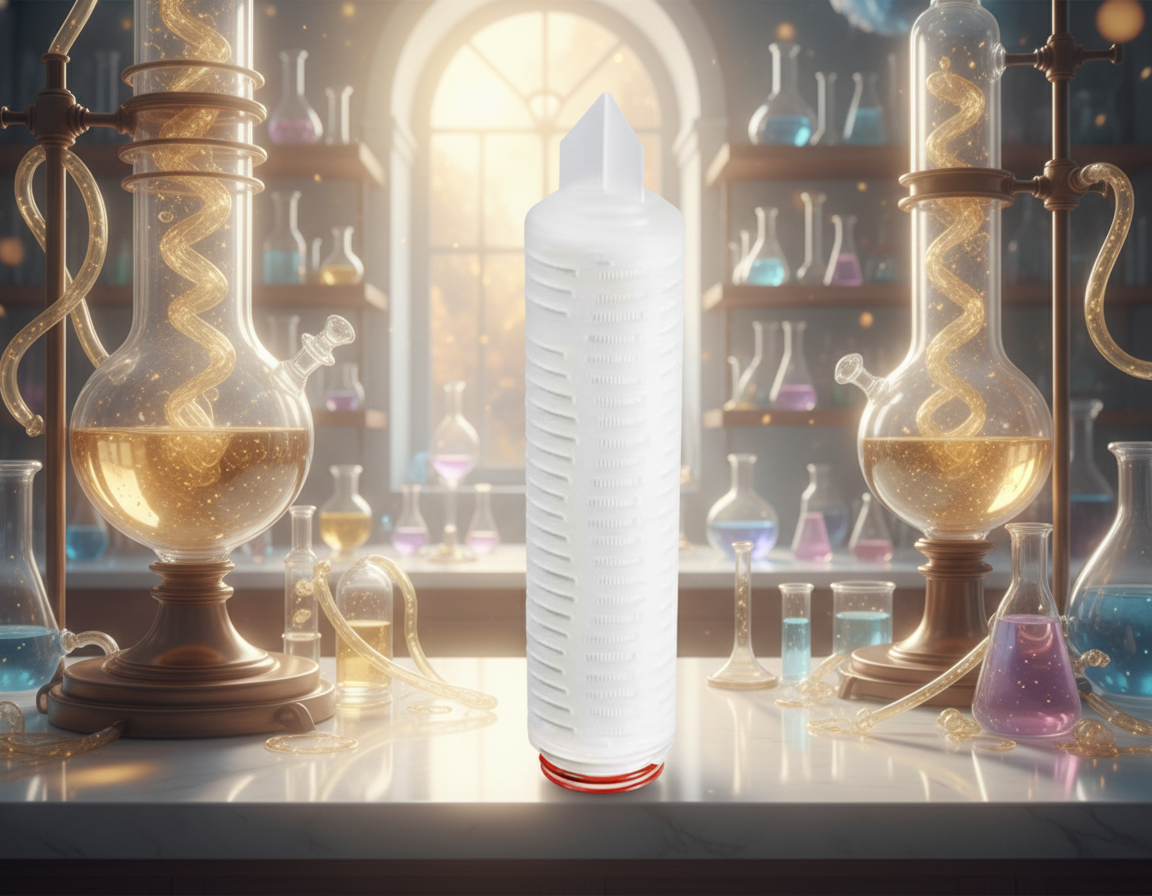

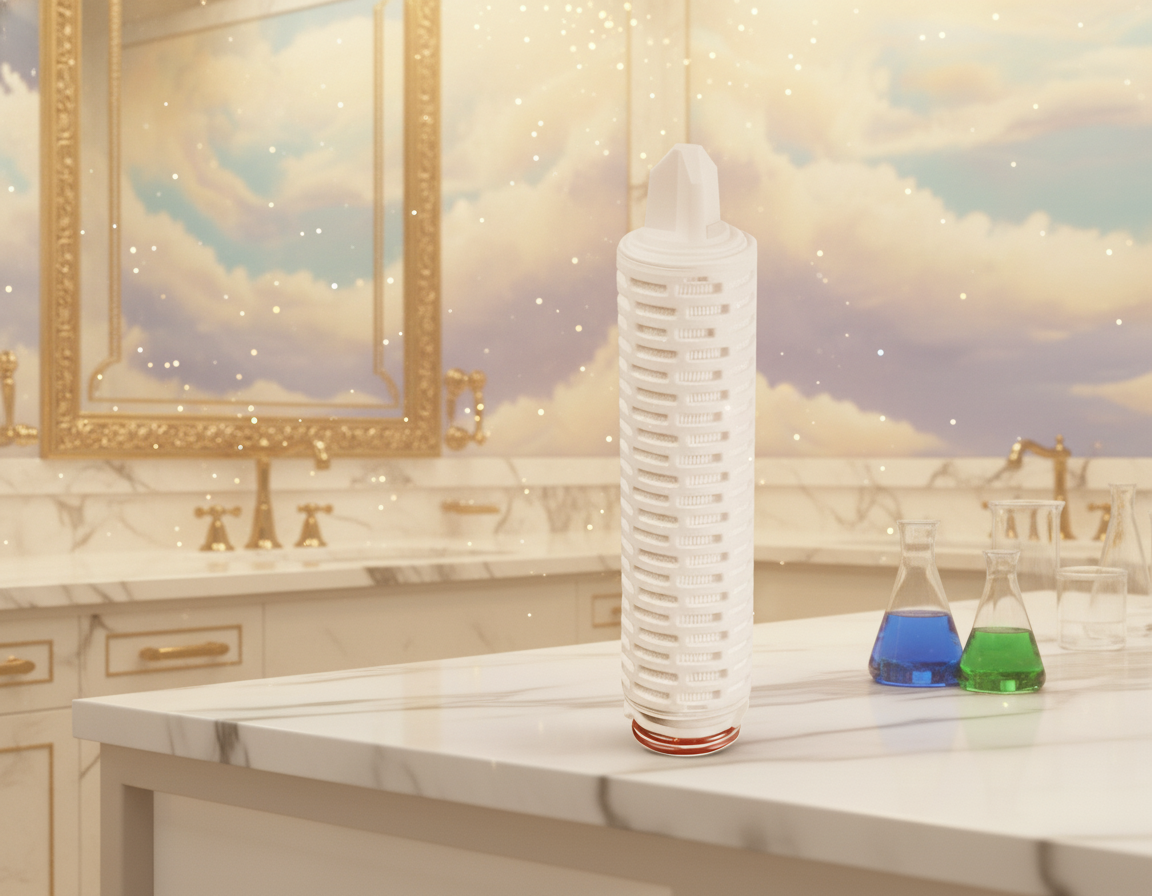

PES Membrane Filter Cartridge

The PES (Polyethersulfone) Membrane Filter Cartridge is an absolute-rated sterile filtration solution designed to provide exceptional performance for aqueous filtration processes with high purity and reliability. These cartridges utilize a hydrophilic, asymmetric PES membrane that delivers very high retention efficiency, typically achieving up to 99.9999 % bacterial and particulate removal at sterile pore sizes (e.g., 0.1 µm or 0.22 µm), making them ideal for critical sterilization applications.

⭐Key Attributes

• ⚙️ Processing Type: Filtration
• 💧 Productivity: 1000 L/Hour
• 🔩 Core Component: Hydrophilic PES Membrane

• ⚖️ Weight: 0.5 kg
• 🧬 Low Protein Adsorption — Ideal for biotech, laboratory, and pharmaceutical use.

• 🧴 Excellent Compatibility — Suitable for corrosive liquids and organic compounds.
• 🔬 Absolute Filtration Rating
  Ensures precise particle retention and consistent filtration quality.
• Strong Chemical & Thermal Stability — PES exhibits excellent temperature tolerance and resistance to many common laboratory chemicals.
• ⚗️ Exceptional Chemical Compatibility
  Suitable for a wide range of aqueous solutions, including buffers, media, and biological fluids.

• 💧 Hydrophilic PES Membrane — Rapid wetting without pre-wetting and inherently low protein and drug binding for minimal sample loss.
• 🛡️ High-Purity Construction
  Hydrophilic membrane ensures fast wetting and stable flow rates. Engineered for sterile filtration with consistent pore size distribution and high microbial retention. Suitable for critical applications requiring low extractables and consistent integrity.
• 🚀 High Flow & Low Pressure Drop — Asymmetric pore structure maximizes membrane surface area for efficient throughput and reduced differential pressure.
• 💲 Economical Choice — Reliable performance at a lower cost than premium-name competitors.

📋 Applications

• 🧪 Protein solutions & biological samples
• ⚗️ Acids and bases within pH 3–10
• 🧴 Organic compound filtration
• 🧬 Laboratory & pharmaceutical processing
• 🧹 General-purpose chemical filtration

🏗️ Construction & Dimensions

• 🪶 Material: Polypropylene housing
• 🧱 Internal Support: PP or PP + stainless liner
• 🧱 Out Cage: PP
• 📐 Outer Diameter (OD): 68–69 mm
• 📏 Inner Diameter (ID): 32 mm
• 📏 Length Options: 2.5" to 40"
• 🫧 Pore Size Options: 0.10 μm, 0.22μm, 0.45 μm, 1 μm, 10 μm, 50 μm
• 📊 Effective Filtration Area: ≥ 0.60 m²

🌡️ Temperature & Pressure Ratings

• Normal Operating Temperature: ≤55°C
• Max Operating Temperature: 80°C (ΔP ≤ 0.10 MPa)

• Max Differential Pressure:
  ➤ Forward: 0.42 MPa @ 25°C
  ➤ Reverse: 0.21 MPa @ 25°C

🌟 Features & Benefits

• 🛡️ Ultra-Low Extractables
  High-quality core and cage materials, extremely low dissolved matter, maintaining product purity and stability.
• 🎛️ Flexible Filtration Options
  Available in single, double, and multi-layer membrane configurations, giving users more choices for performance, flow rate, and retention needs.
• 🔄 Universal Compatibility
  Multiple end-cap types allow seamless integration with a wide range of filter housings, making installation fast and versatile.
• 🔥 No Adhesive Contamination
  Thermally bonded construction eliminates the risk of adhesive pollutants, ensuring safe and clean filtration for sensitive applications.
• 🧼 Cleanroom Production Quality
  Manufactured in an ISO Class 8 cleanroom and rinsed with high-purity water, guaranteeing low particle shedding and high filtration integrity.
