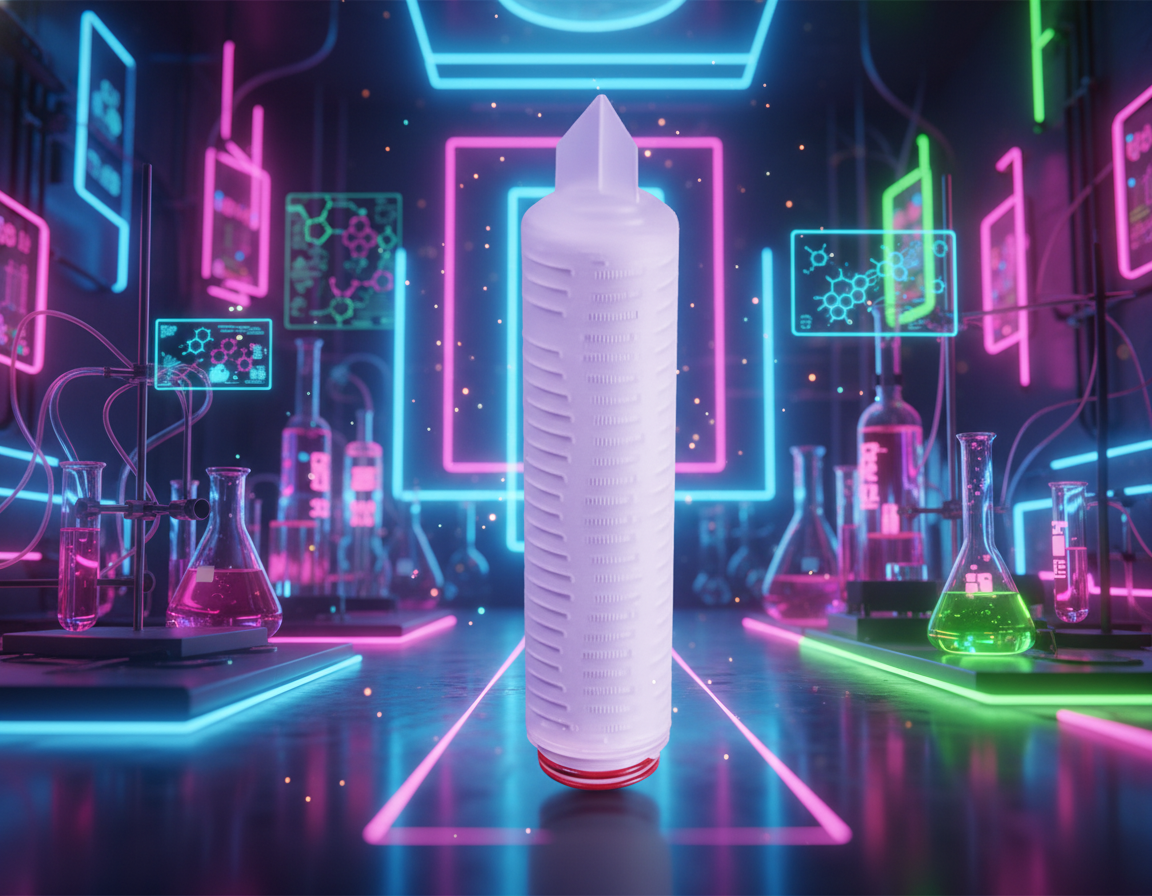

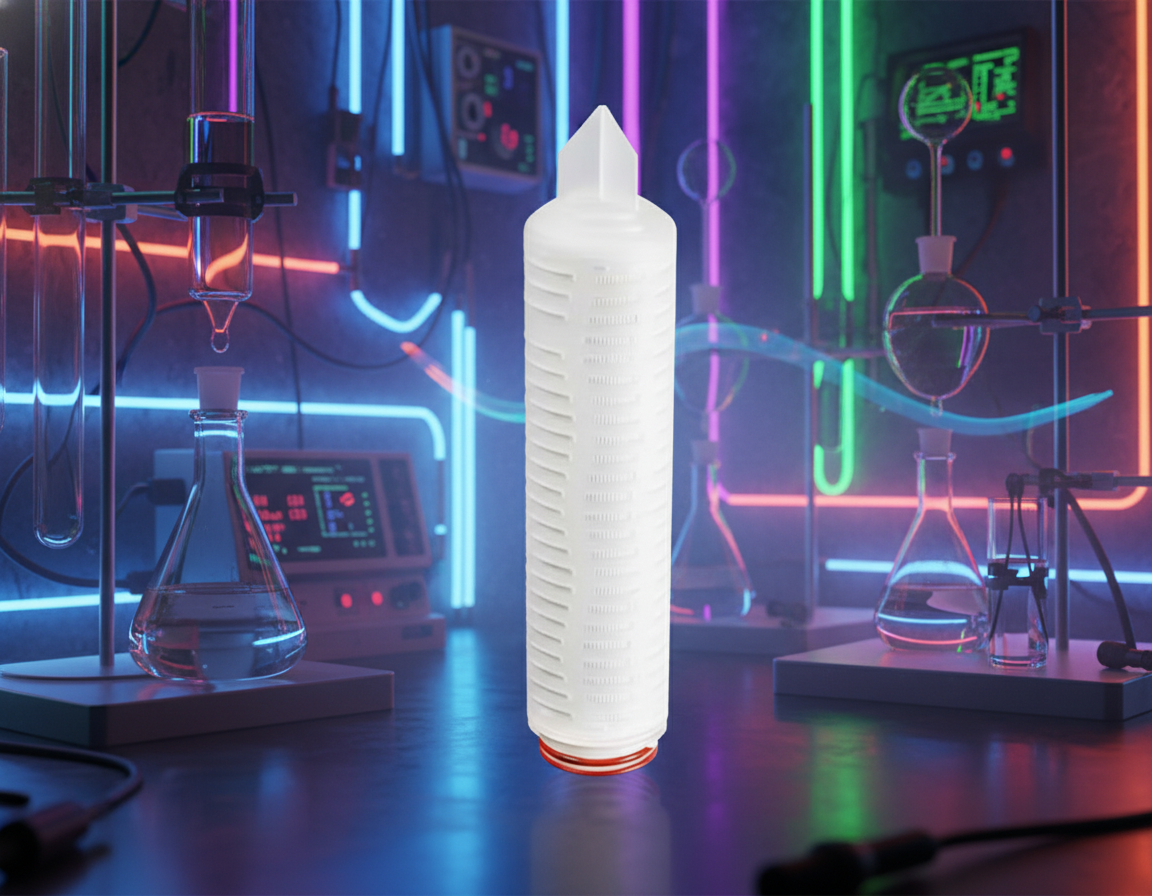

Nylon Membrane Filter Cartridge

The Nylon Membrane Filter Cartridge uses a naturally hydrophilic nylon (Nylon 6 or Nylon 66) membrane, which does not require pre-wetting and provides reliable liquid filtration performance across a broad range of applications. Nylon membranes are characterized by excellent chemical compatibility, strong mechanical strength, uniform pore structure, and durability, making them suitable for aqueous solutions and alkaline liquids.

Nylon cartridges can be manufactured with controlled porosity and pleated construction to maximize surface area for high flow rates and long service life. They are absolute-rated, meaning they are designed to retain particles consistently at their specified micron rating, offering reliable filtration for critical processes.

⭐Key Attributes

• ⚙️ Processing Type: Filtration
• 💧 Productivity: 1000 L/Hour
• 🔩 Core Component: Hydrophilic NYLON Membrane

• ⚖️ Weight: 0.5 kg
• 🧬 Low Protein Adsorption — Ideal for biotech, laboratory, and pharmaceutical use.

• 🧴 Excellent Compatibility — Suitable for corrosive liquids and organic compounds.
• 💪High Mechanical Strength — Strong structural integrity and resistance to deformation under operating conditions.
• 🔬 Absolute Filtration Rating
  Ensures precise particle retention and consistent filtration quality.
• Strong Chemical & Thermal Stability — NYLON exhibits excellent temperature tolerance and resistance to many common laboratory chemicals.
• ⚗️ Exceptional Chemical Compatibility
  Suitable for a wide range of aqueous solutions, alkali, mild acids, aqueous solutions, buffers, media, biological fluids, and many organic solvents.

• 💧 Hydrophilic NYLON Membrane — Rapid wetting without pre-wetting and inherently low protein and drug binding for minimal sample loss.
• 🛡️ High-Purity Construction
  Hydrophilic membrane ensures fast wetting and stable flow rates. Engineered for sterile filtration with consistent pore size distribution and high microbial retention. Suitable for critical applications requiring low extractables and consistent integrity.
• 🚀 High Flow & Low Pressure Drop — Asymmetric pore structure maximizes membrane surface area for efficient throughput and reduced differential pressure.

• 🧼 Clean, Non-Shedding Membrane — Nylon membranes are produced with minimal fiber shedding and low extractables.

• 💲 Economical Choice — Reliable performance at a lower cost than premium-name competitors.

📋 Applications

• 🧪 Protein solutions, biological samples, Liquid stream filtration and clarification
• 🍺 Food & beverage filtration (bottled water, soft drinks, beer)
• ⚗️ Alkaline solutions and solvent filtration
• 🧴 Organic compound filtration
• 🧬 Laboratory & pharmaceutical processing
• 🧹 General-purpose chemical filtration
• 🔬 Electronics and semiconductor water filtration

🏗️ Construction & Dimensions

• 🪶 Material: Polypropylene housing
• 🧱 Internal Support: PP or PP + stainless liner
• 🧱 Out Cage: PP
• 📐 Outer Diameter (OD): 68–69 mm
• 📏 Inner Diameter (ID): 32 mm
• 📏 Length Options: 2.5" to 40"
• 🫧 Pore Size Options: 0.10 μm, 0.22μm, 0.45 μm, 1 μm, 10 μm, 50 μm
• 📊 Effective Filtration Area: ≥ 0.60 m²

🌡️ Temperature & Pressure Ratings

• Normal Operating Temperature: ≤55°C
• Max Operating Temperature: 80°C (ΔP ≤ 0.10 MPa)

• Max Differential Pressure:
  ➤ Forward: 0.42 MPa @ 25°C
  ➤ Reverse: 0.21 MPa @ 25°C

🌟 Features & Benefits

• 🛡️ Ultra-Low Extractables
  High-quality core and cage materials, extremely low dissolved matter, maintaining product purity and stability.
• 🎛️ Flexible Filtration Options
  Available in single, double, and multi-layer membrane configurations, giving users more choices for performance, flow rate, and retention needs.
• 🔄 Universal Compatibility
  Multiple end-cap types allow seamless integration with a wide range of filter housings, making installation fast and versatile.
• 🔥 No Adhesive Contamination
  Thermally bonded construction eliminates the risk of adhesive pollutants, ensuring safe and clean filtration for sensitive applications.
• 🧼 Cleanroom Production Quality
  Manufactured in an ISO Class 8 cleanroom and rinsed with high-purity water, guaranteeing low particle shedding and high filtration integrity.
