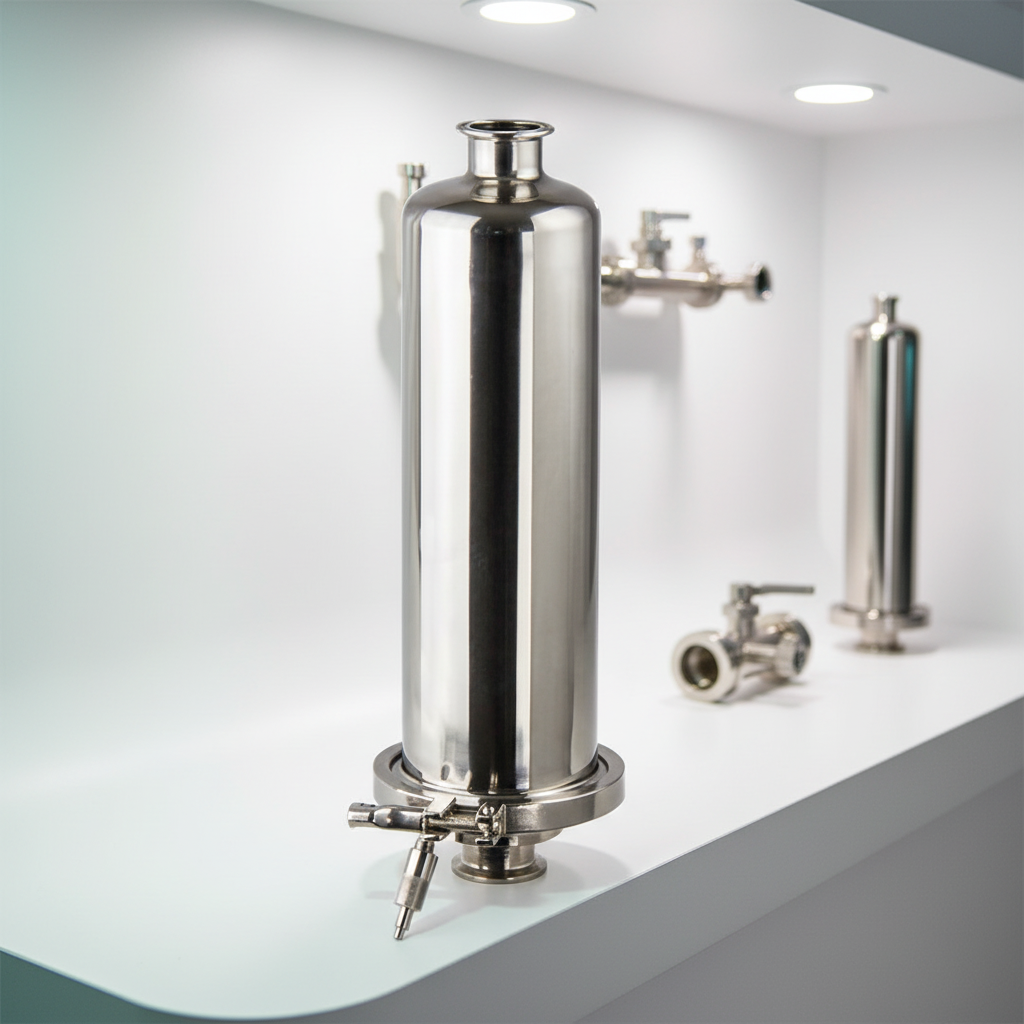

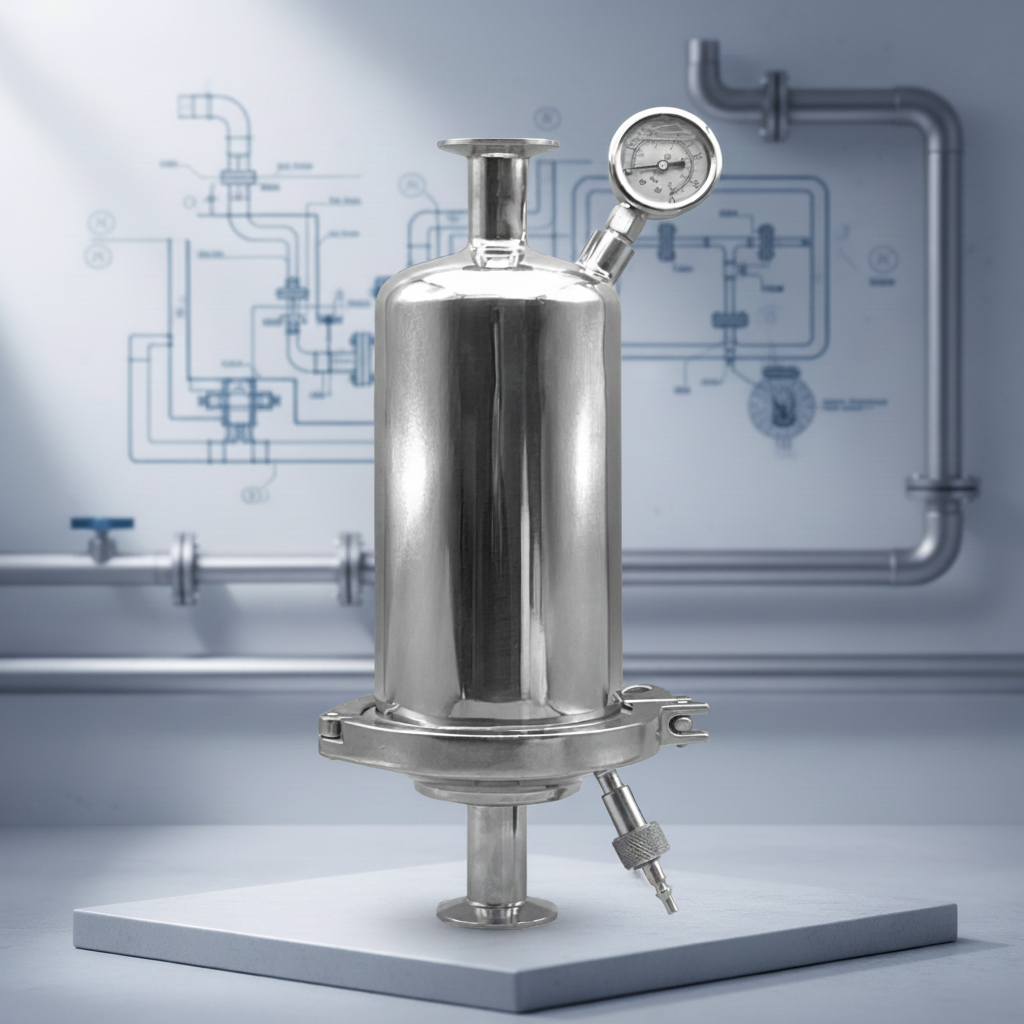

Sanitary Stainless Steel Ventilation Filter Housing

Product Overview

Upgrade your air and gas filtration system with a high-performance stainless-steel housing built for industrial durability, smooth airflow, and long-term reliability. Engineered for demanding environments—manufacturing, laboratories, pharmaceutical facilities, and clean-room systems—it delivers consistent results under high pressure and continuous operation.

This Single Core Air / Gas Filter Housing provides superior particle removal, stable pressure control, and strong structural integrity. Available in 304L or 316L stainless steel with a mirror-polished interior and multiple connection options, it integrates seamlessly into new or existing systems. With a wide 0.2–200 μm micron range, it supports a broad selection of filtration media for diverse industrial applications.

⭐ Key Features

• Premium stainless-steel construction (304L / 316L) for superior corrosion resistance
• High-pressure performance: rated for 100 psi, 150 psi, and 300 psi systems
• Wide capacity ranges from 5–500 cbm/h
• Flexible micron selection from 0.2–200 μm
• Mirror-polished interior for sanitary flow and reduced contaminant retention
• Multiple inlet/outlet types including clamp, flange, and threaded
• Straight-type design for efficient airflow and easy maintenance
• ISO-certified quality with full documentation provided
• Custom length options available: 2.5”, 5”, 10”, 20”, 30”
• Impurities Removal: 99.9% Impurities Removed.

📊 Key Attributes

🔧 Core Components

• Stainless steel filter housing
• Material Options: 304L or 316L
• Type: Straight type
• Style: Single or multi-filter configuration

🏷️ Product Details

• Brand Name: Filter Forge Supply
• Weight: 18.7 lbs / 8.5 kg
• Lengths: 2.5”, 5”, 10”, 20”, 30”, or customized

🛡️ Quality & Compliance

• Warranty: 1 Year
• Certification: ISO compliant
• Machinery Test Report: Provided
• Video Outgoing Inspection: Provided

📈 Performance Specifications

• Max Working Pressure: 100 psi, 150 psi, 300 psi
• Capacity: 5–500 cbm/h
• Micron Rating: 0.2–200 μm
• Design Pressure: 0.6–10 MPa
• Design Temperature: 20°C–140°C (68°F–284°F)

✨ Surface Finishes

• Internal Surface: Mirror Polishing
• External Surface: Mirror Polishing or Matte Finish

🧵 Seal Material Options

• Silicone
• EPDM
• Viton
• PTFE

🔗 Inlet & Outlet Options

• Clamp
• Flange
• Threaded
• NPT
• Connection Material: 304L or 316L

📘 Main Application

💧 Liquid Filtration

• Purification and sterilization of purified water, water for injection (WFI), and solvents
• Particle removal for high-purity chemicals
• Ideal for food & beverage, optics, electronics, chemical processing, and water tank

🥼 High-Purity Process Filtration

• Removal of fine particles, impurities, and contaminants
• Suitable for high-purity production lines requiring sterilization-grade filtration

🌬️ Gas Filtration

• Filtration and impurity removal for steam, CO₂, nitrogen, and compressed air
• Dust removal and sterilization of gas pipelines in pharmaceutical, food, and electronics industries
• Commonly used for compressed air sterilization, gas purification, and particle removal

🌟Included With Purchase

• Stainless Steel Filter Housing
• Food-grade Silicone Seal Rings
• Quality Assurance Test Report
• Outgoing Video Inspection File

💎Why Choose Filter Forge Supply

• 🏭 Built and tested in the United States
• 🧰 Backed by a 1-year warranty
• 📄 ISO Certified manufacturing process
• 🔍 Every unit pressure tested and video inspected prior to shipping
• 🚚 Fast delivery (7–14 days)
