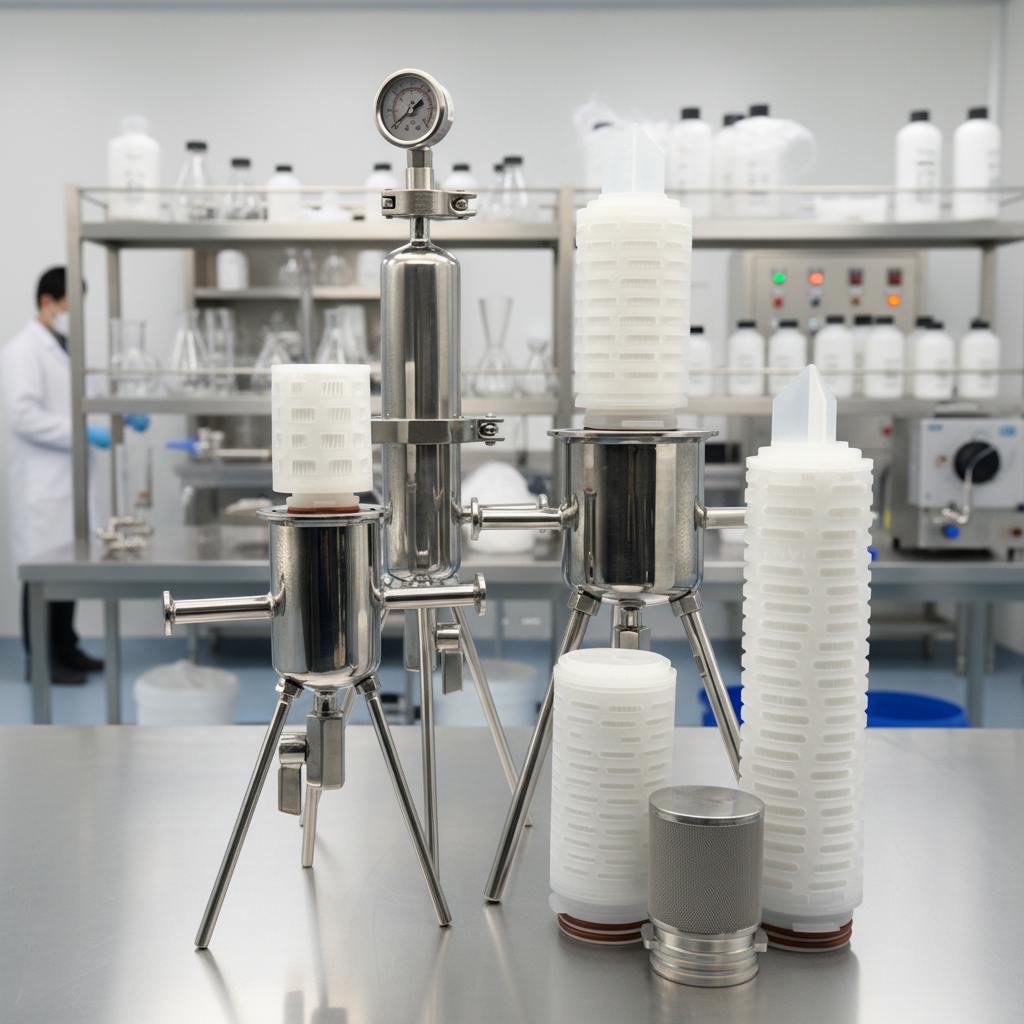

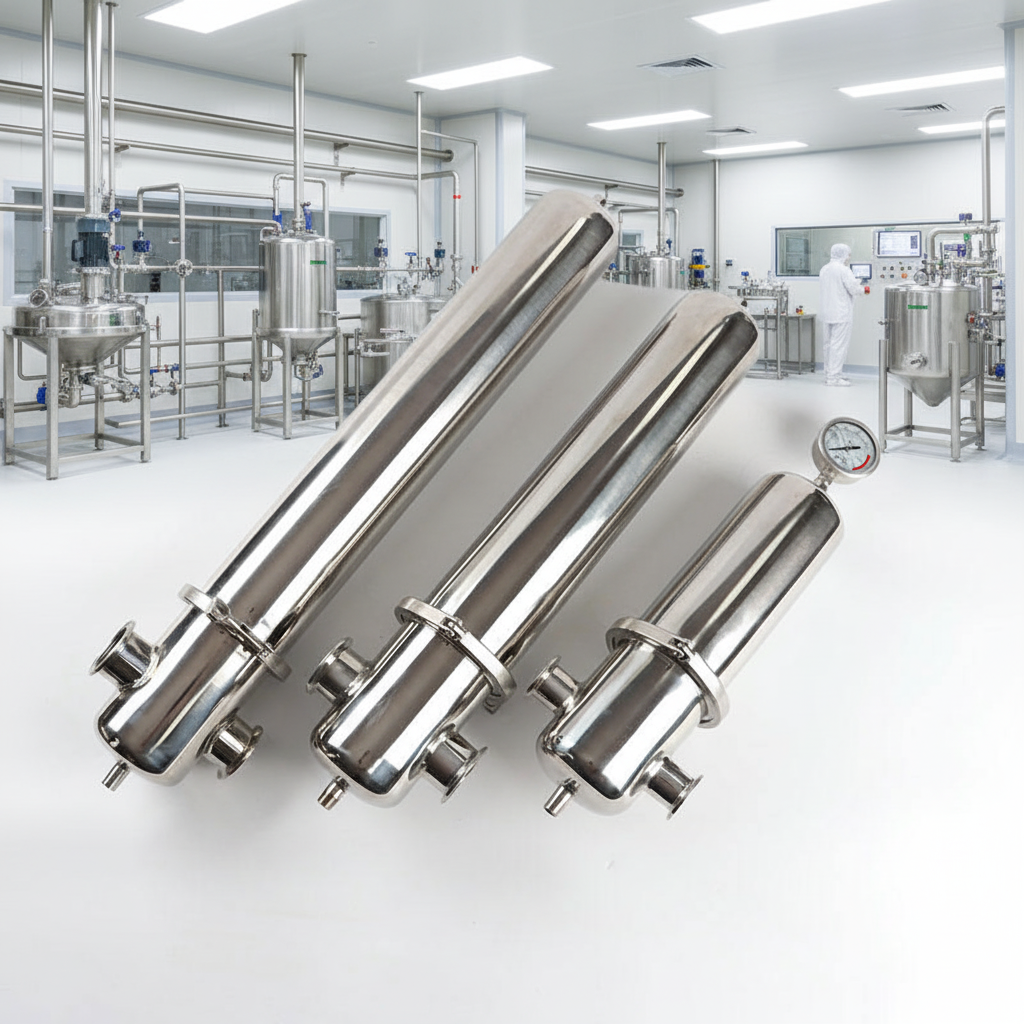

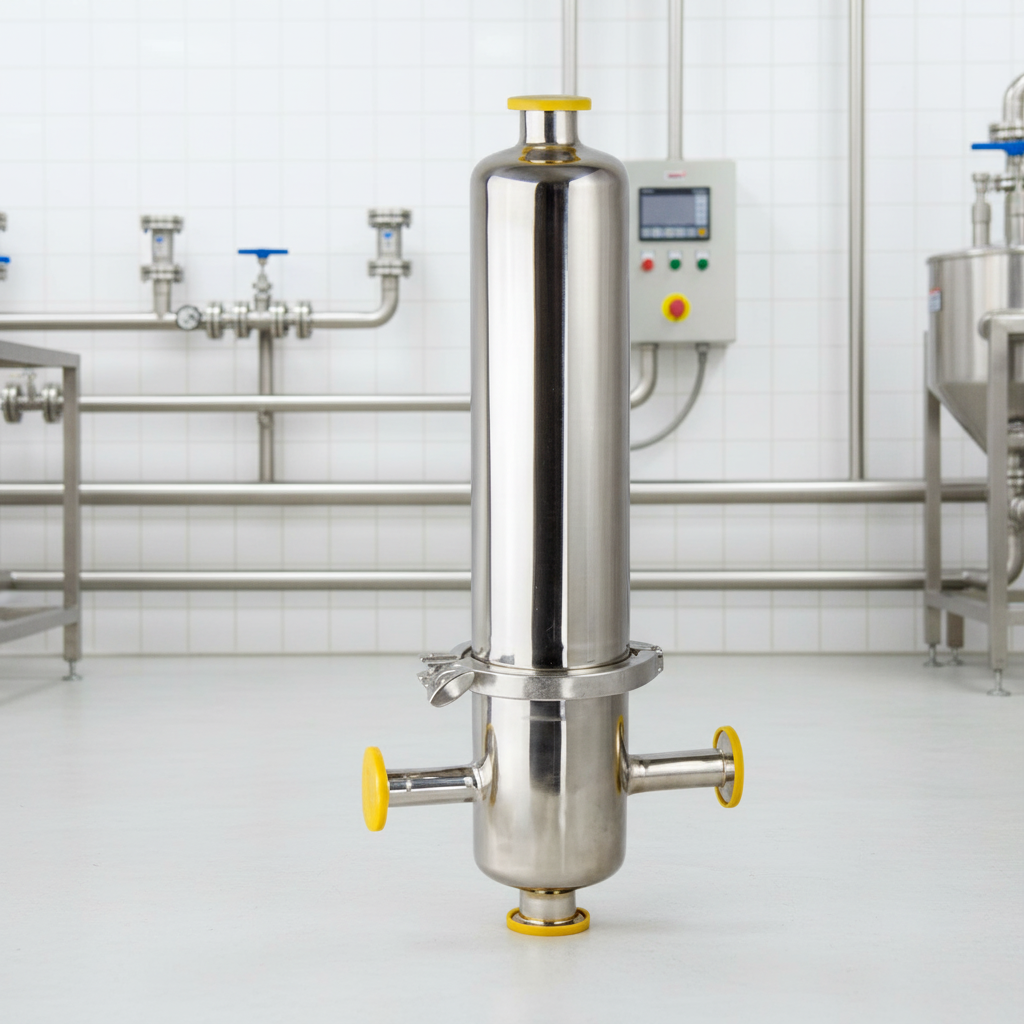

Hot Gas & Steam Air Filter Housing

Overview

This industrial stainless-steel filter housing delivers high-performance air, gas, and steam filtration using a durable SUS304L/316L, 2 mm reinforced body with a mirror-polished interior. It supports DOE, 222, and 226 filter elements, operates across a wide 0.1–200 μm micron range, and achieves 99.9% impurity removal. Rated for 100–300 psi and up to 150°C, it’s built for demanding environments including sterile air supply, steam filtration, and high-temperature gas processes.

Compatible with nitrogen, oxygen, CO₂, hydrogen, helium, methane, propane, steam, and more, this housing integrates easily with standard flange connections and multi-stage filtration setups. Each unit includes a differential pressure gauge, safety valve, drain valve, silicone seals, QA test report, and inspection video—backed by ISO-certified manufacturing and a 1-year warranty for long-lasting, reliable performance.

📊 Key Features

💪Durable Stainless-Steel Construction

• Material: Stainless Steel 304 / 316L

• Mirror-polished or electrolytic-polished finish

• Reinforced 2 mm thick housing

💠 Filter Type & Configuration

• Type: Air Filter Element

• Construction: Cartridge Filter

• Style Options: Single Filter / Multi-Filter

• Air Inlet Sizes: 1" or 1.5" or Customized

• Drain Type: Automatic

• Gasket Location: Upstream & Downstream

🛡️ High-Performance Filtration

• Impurities Removal: 99.9%
• Micron Rating: 0.1–200 μm

• Application: Gas & Steam Filtration

• Compatible Filter Elements: DOE, 222, 226

🌡️ Pressure & Temperature Ratings

• Max Working Pressure: 100 psi / 150 psi / 300 psi

• Design Pressure: 0.8 MPa

• Max Operating Pressure: 0.6 MPa

• Design Temperature Range: 20°C–150°C

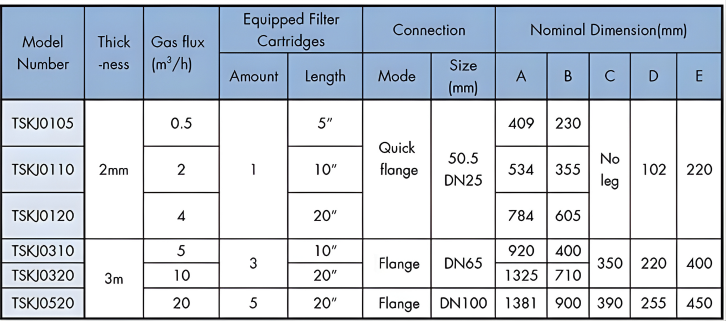

📈Specifications

• Material: Stainless Steel 304 / 316L
• Surface Treatment: Mirror polishing or electrolytic polishing
• Seal Style: O-ring or flat gasket
• Element Connector: DOE, 222, 226
• Finish: Internal & external polish meeting GMP and electronics-grade standards
• Barrel Connector Options: Threaded, Hoop, or Flanged
  Inlet/Outlet Inner Diameter: 1"
• Certification: CE & ISO

• Warranty: 1 Year

• Weight: 8 kg


📋 Applications

🌬️ Air Terminal Sterilizing Filter

This high-performance sterilizing filter meets international standards and matches the most advanced global products in:

• Structural design

• Media efficiency

• Filtration precision

• Service lifespan

✅ The PTFE-coated filter element provides:

• Ultra-high filtration accuracy (0.01 μm at 99.9999%)
  Strong hydrophobicity
•  High-temperature resistance

• Low pressure drop

• Extended operational life

✅ Ideal for removing fine impurities, phages, and microorganisms from air streams.

💨 Steam Filtration

Designed with a robust stainless-steel shell and a replaceable internal filter element.

✅ Advantages include:

• High-temperature resistance

• Corrosion resistance

• Renewable filter media

• Upper-cylinder disassembly for quick filter replacement

✅ Optional filter media:

• Titanium sintered elements

• Stainless steel fiber sintered felt

✅ Perfect for sterilized steam pipelines and high-temperature gas systems.

🌀 Compressed Gas Filtration

Suitable for a wide range of industrial gases including:
argon, nitrogen, helium, hydrogen, methane, propane, CO₂, oxygen, steam, and more.

🧿 System features:

• SUS304/316L stainless-steel housing

• Full mirror-polished interior/exterior

• Multi-stage filtration (pre-filter, coarse filter, fine filter)

• Flow-based filter selection for optimal performance

🌐 Used widely in:

• Fermentation & bioprocessing (sterile air supply for fermenters)

• Carbon dioxide & nitrogen purification
• Compressed-air sterilization for food, biotech, and pharmaceutical processes

📌 Additional Use Cases

• 🌡️ High-temperature gas filtration using titanium rod or sintered stainless-steel elements
• 💧Purification and sterilization of compressed gases in clean-processing lines
• 🧪Biological fermentation sterile gas supply
• ⏲️Applications requiring differential pressure monitoring

🔗 System Integration Benefits

✅ Standard flange connections for seamless piping integration

🧰 Equipped with:

• ⏱️ Differential pressure gauge
• 🚨 Safety valve
• 🔩 Drain valve
• 💨Available gas-flow configurations starting at 0.5 L/min

🌟Included With Purchase

• Stainless Steel Filter Housing
• Food-grade Silicone Seal Rings
• Quality Assurance Test Report
• Outgoing Video Inspection File

💎Why Choose Filter Forge Supply

• 🏭 Built and tested in the United States
• 🧰 Backed by a 1-year warranty
• 📄 ISO Certified manufacturing process
• 🔍 Every unit pressure tested and video inspected prior to shipping
• 🚚 Fast delivery (7–14 days)
