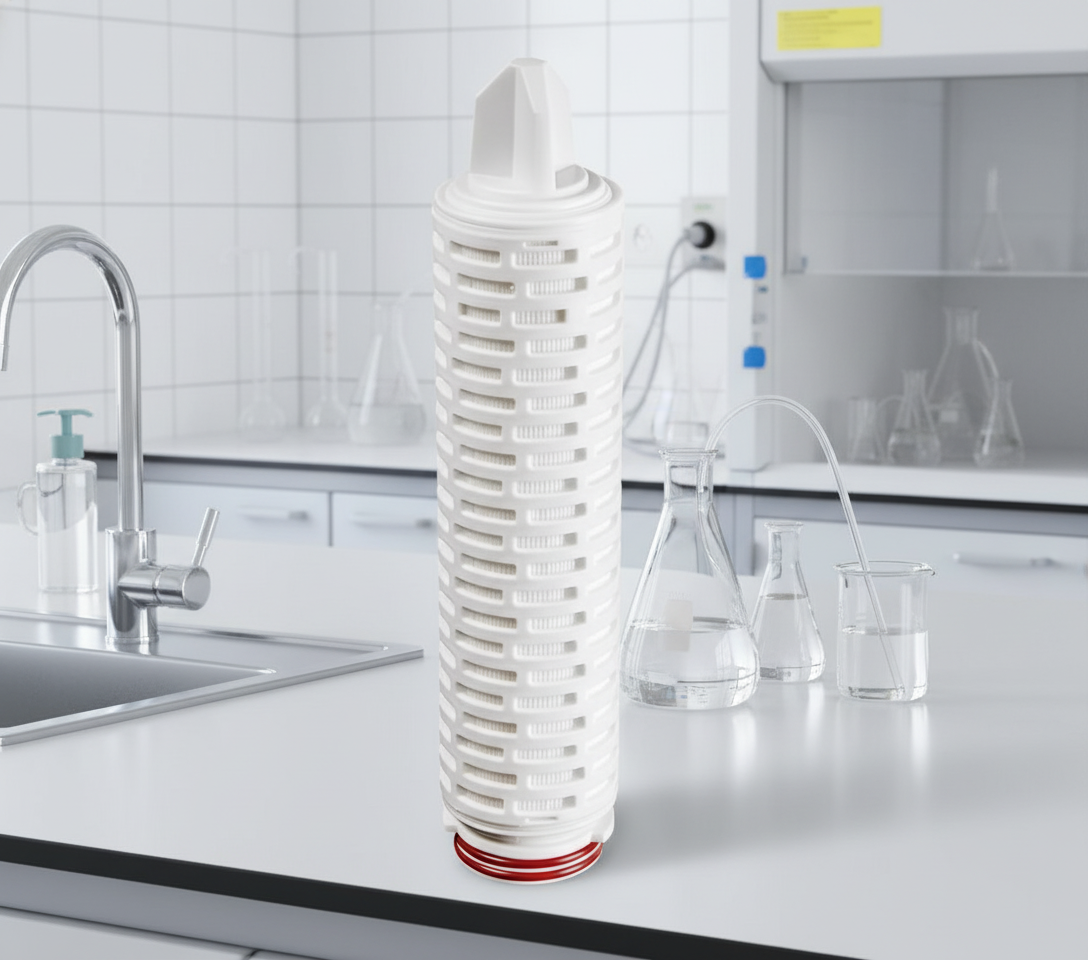

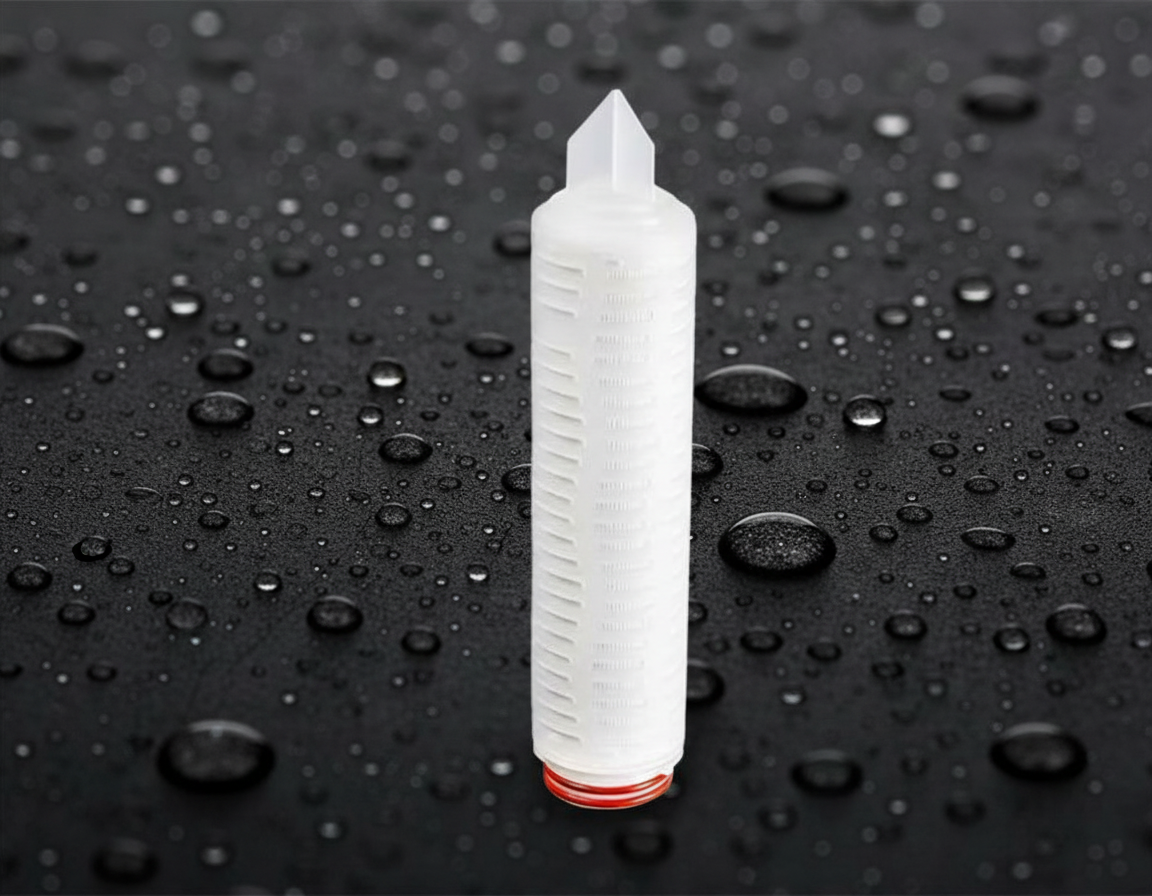

Hydrophobic PTFE Membrane Filter Cartridge

📊Key Attributes

• ✅ Core Component: Hydrophobic PTFE membrane
• ✅ Filter Media: PTFE membrane
• ✅ Impurity Purification: 99.9% Impurity's removed
• ✅ Length Options: 2.5" – 40"
• ✅ Outer Diameter (OD): 69 mm
• ✅ Pore Sizes Available: 0.20, 0.45, 1.0, 3.0, 5.0, 10.0, 50.0 μm
• ✅ Effective Filtration Area: ≥ 0.55 ㎡
• ✅ Seal Ring Materials: Silicone, EPDM, Nitrile, Fluorous, Fluorous/PTFE
• ✅ Max Working Temperature: 85°C (pressure differential ≤ 0.10 MPa)
• ✅ Replacement For: 5182507T1—LG
• ✅ Weight: 0.4 kg
• ✅ Machinery Test Report: Provided
• ✅ Video Outgoing Inspection: Provided
• ✅ Warranty: 1 Year
• ✅ Application: Chemical preparation

📈Specifications

🧪 Filtration & Materials

• Filtration Media: Hydrophobic PVDF membrane
• Media Support: PP non-woven
• Cage Material: PP, all-fluoropolymer, or customized
• Core Material: PP, all-fluoropolymer, or customized

📐 Dimensions

• Outer Diameter (OD): Φ68–69 mm
• Inner Diameter (ID): Φ32 mm
• Length Options: 2.5" – 40"
• Effective Filtration Area: ≥ 0.50 ㎡
• Pore Size Options: 0.20, 0.45, 1.0, 3.0, 5.0, 10, 50 μm

🪢 Seal & O-Ring Materials

• Silicone
• EPDM
• Nitrile
• Fluorous
• Fluorous + PTFE

🌡️ Operating Conditions

• Max Working Temperature: 85°C
• Max Pressure Differential: ≤ 0.10 MPa

🧫 Purity & Compliance

• Endotoxin Level: < 0.25 EU/mL
• Extractables: < 0.03 g (per 10" cartridge)

🧼 Sanitization / Sterilization

• Steam Sterilization: 121 ± 2°C for 30 minutes (single cycle)
• Sterilization Cabinet: 30 minutes

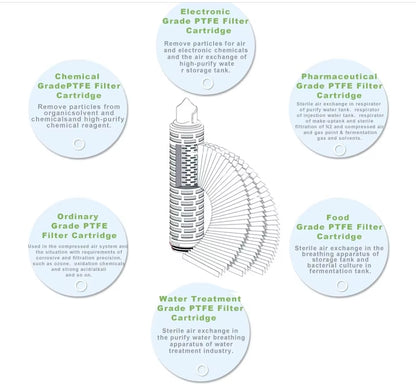

📋PTFE Filter Cartridge Grades & Applications

1. 💡 Electronic Grade PTFE Filter Cartridge

• Removes particles from air and electronic chemicals
• Supports air exchange in high-purity water storage tanks

2. 🏥 Pharmaceutical Grade PTFE Filter Cartridge

✅ Sterile air exchange for:

• Purified water tanks
• Injection water tanks
• Make-up tanks
• Sterile filtration of N₂, compressed air, and multiple gases
• Ideal for fermentation and solvent-based processes

3. 🍱 Food Grade PTFE Filter Cartridge

• Sterile air exchange for storage-tank breathing systems
• Used in bacterial culture and fermentation tanks

4. 💧 Water Treatment Grade PTFE Filter Cartridge

• Sterile air exchange for purified-water breathing systems
• Designed for water-treatment and purification industries

5. ⚙️ Ordinary Grade PTFE Filter Cartridge

• Used in compressed-air systems
• Suitable for corrosive or high-precision filtration environments
• Handles ozone, oxidizing chemicals, and strong acids/alkalis

6. 🧪 Chemical Grade PTFE Filter Cartridge

• Removes particles from organic solvents and chemicals
• Ensures high-purity chemical reagent filtration
