Overview

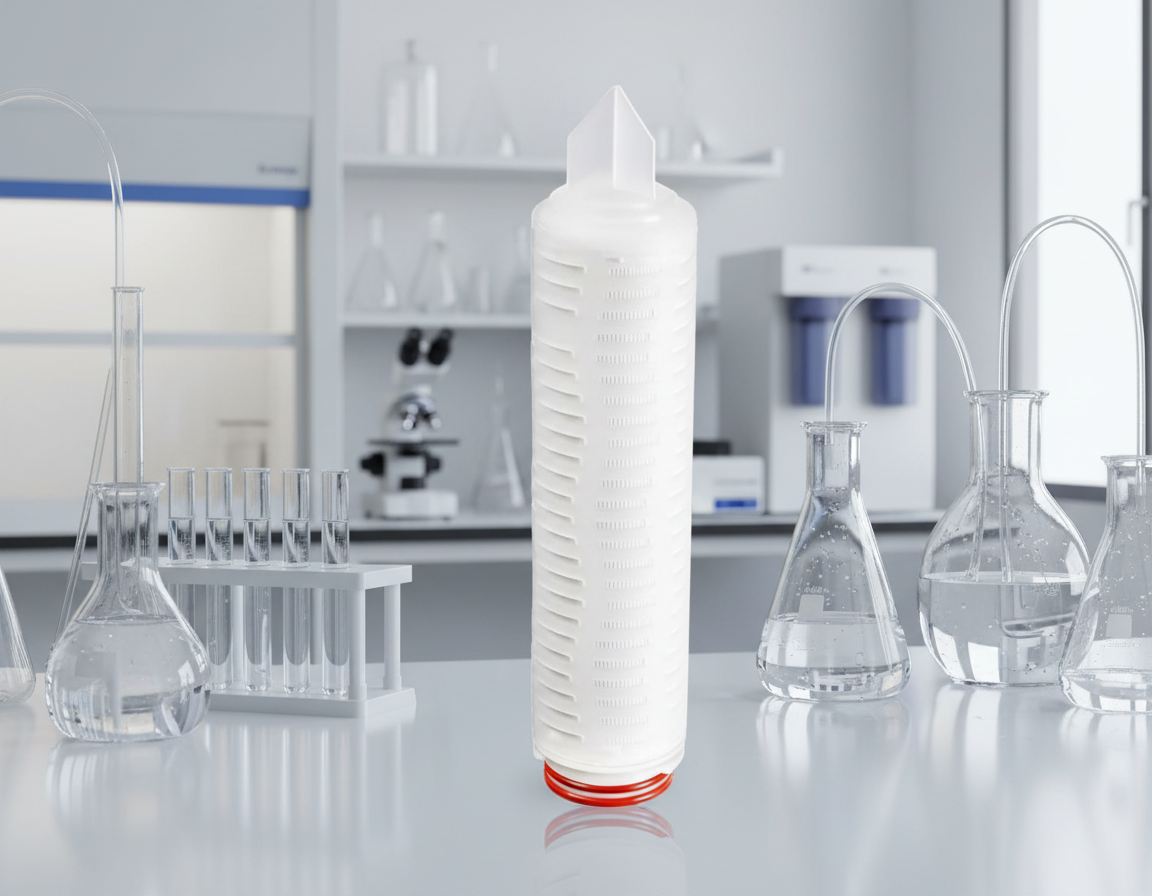

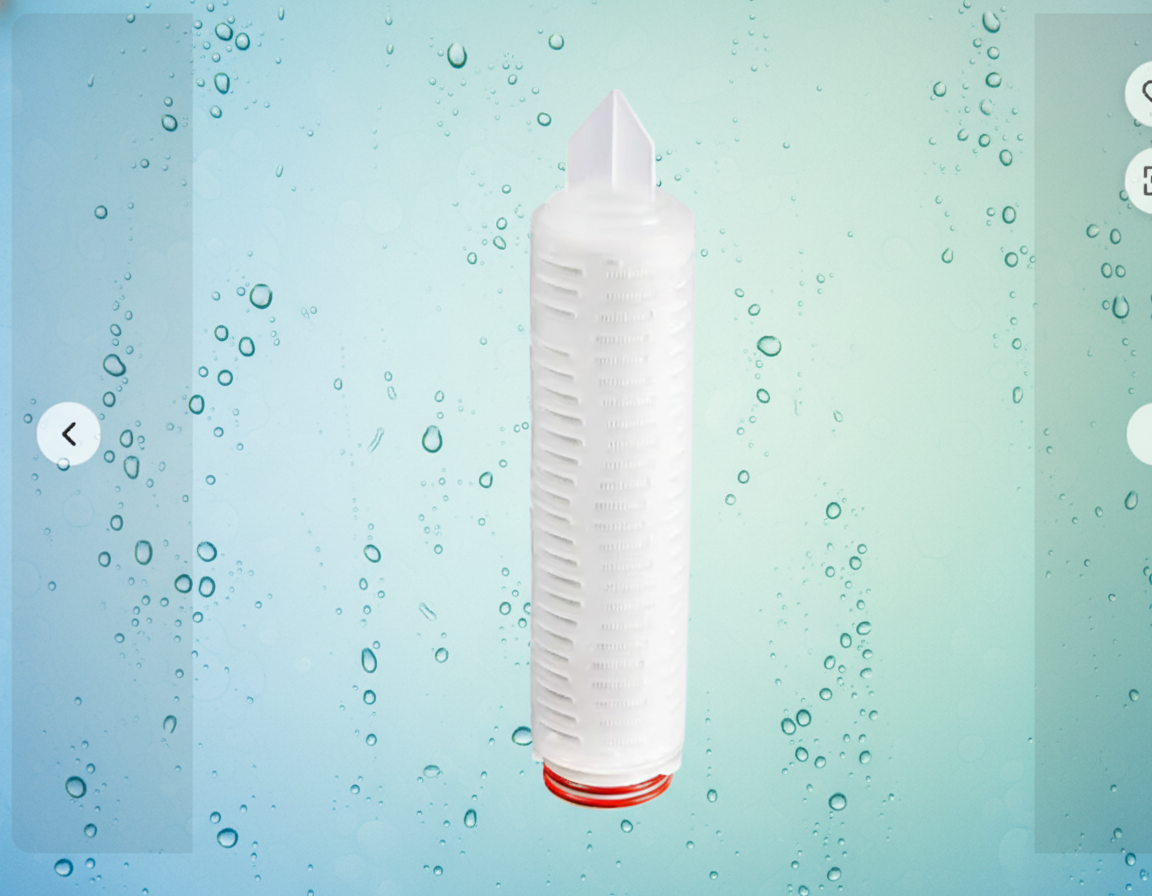

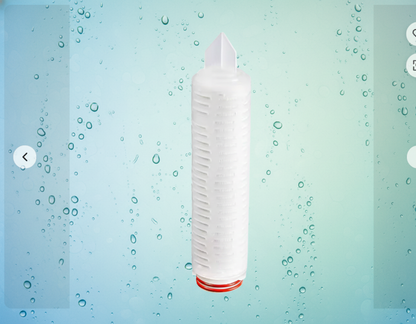

Hydrophilic PTFE Filter Cartridge

The Hydrophilic PTFE Filter Cartridge is an absolute-rated filtration solution engineered for high-purity and high-chemical-resistance applications. Designed with a hydrophilic PTFE membrane, it provides exceptional performance in environments where aggressive chemicals and demanding process compatibility are essential.

⭐Key Attributes

• ⚙️ Processing Type: Filtration
• 💧 Productivity: 1000 L/Hour
• 🔩 Core Component: Hydrophilic PTFE Membrane

• ⚖️ Weight: 0.5 kg
• 🔬 Absolute Filtration Rating
  Ensures precise particle retention and consistent filtration quality.
• ⚗️ Exceptional Chemical Compatibility
  Ideal for aggressive acids, strong bases, oxidizers, and a wide range of organic compounds.
• 💧 Hydrophilic PTFE Membrane
  Supports fast wetting, high flow rates, and stable performance in aqueous solutions.
• 🛡️ High-Purity Construction
  Suitable for critical applications requiring low extractables and consistent integrity.

🏗️ Construction & Dimensions

• 🪶 Material: Polypropylene housing
• 🧱 Internal Support: PP or PP + stainless liner
• 🧱 Out Cage: PP
• 📐 Outer Diameter (OD): 68–69 mm
• 📏 Inner Diameter (ID): 32 mm
• 📏 Length Options: 2.5" to 40"
• 🫧 Pore Size Options: 0.10 μm, 0.22μm, 0.45 μm, 1 μm, 10 μm, 50 μm
• 📊 Effective Filtration Area: ≥ 0.60 m²

🌡️ Temperature & Pressure Ratings

• Normal Operating Temperature: ≤55°C
• Max Operating Temperature: 80°C (ΔP ≤ 0.10 MPa)

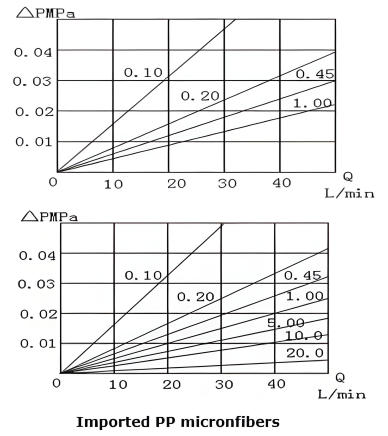

• Max Differential Pressure:
  ➤ Forward: 0.42 MPa @ 25°C
  ➤ Reverse: 0.21 MPa @ 25°C

🌟 Features & Benefits

• 🛡️ Ultra-Low Extractables
  High-quality core and cage materials, extremely low dissolved matter, maintaining product purity and stability.
• 🎛️ Flexible Filtration Options
  Available in single, double, and multi-layer membrane configurations, giving users more choices for performance, flow rate, and retention needs.
• 🔄 Universal Compatibility
  Multiple end-cap types allow seamless integration with a wide range of filter housings, making installation fast and versatile.
• 🔥 No Adhesive Contamination
  Thermally bonded construction eliminates the risk of adhesive pollutants, ensuring safe and clean filtration for sensitive applications.
• 🧼 Cleanroom Production Quality
  Manufactured in an ISO Class 8 cleanroom and rinsed with high-purity water, guaranteeing low particle shedding and high filtration integrity.
